Journal of Resources and Ecology

Chinese Satellite-based Flood Mapping and Damage Assessment in Dongdian Flood Detention Basin, China

LIU Ming, JIN Shengyue, GU Changjun, LI Jingxin, LI Suju, LIU Longfei

Journal of Resources and Ecology, 2024, 15(5): 1344-1357. DOI: 10.5814/j.issn.1674-764x.2024.05.021

Date	Sensor	Resolution	Date	Sensor	Resolution
2023-08-01	GF3 FSII	10 m	2023-08-19	GF6 WFV	16 m
2023-08-02	GF3 FSII	10 m	2023-08-20	GF3B FSI	5 m
2023-08-03	HJ2E NSCAN	20 m	2023-08-22	HJ2B CCD2	16 m
2023-08-04	HJ2A CCD1	16 m	2023-08-23	GF3C FSII	10 m
2023-08-05	GF3B FSII	10 m	2023-08-24	GF3C FSII	10 m
2023-08-06	GF3B FSII	10 m	2023-08-26	HJ2E NSCAN	20 m
2023-08-07	GF3 FSII	10 m	2023-08-28	HJ2A CCD3	16 m
2023-08-08	GF3B FSII	10 m	2023-08-29	GF3B FSII	10 m
2023-08-09	GF1 WFV4	16 m	2023-08-30	HJ2B CCD3	16 m
2023-08-10	GF3C FSII	10 m	2023-09-03	GF3C FSII	10 m
2023-08-11	GF3C FSII	10 m	2023-09-04	GF3 FSII	10 m
2023-08-12	GF3B FSII	10 m	2023-09-06	GF1 WFV2	16 m
2023-08-13	GF3B FSII	10 m	2023-09-11	GF3B FSII	10 m
2023-08-14	GF3 FSII	10 m	2023-09-12	GF3 FSI	5 m
2023-08-15	GF6 WFV	16 m	2023-09-13	HJ2A CCD4	16 m
2023-08-16	GF1 WFV1	16 m	2023-09-14	GF1 WFV1	16 m
2023-08-17	HJ2E NSCAN	20 m	2023-09-15	GF1C PMS	2/8 m
2023-08-18	GF3B FSII	10 m	2023-09-16	HJ2B CCD1	16 m

Table 1 Satellite images during the flood disaster process

Other figure/table from this article

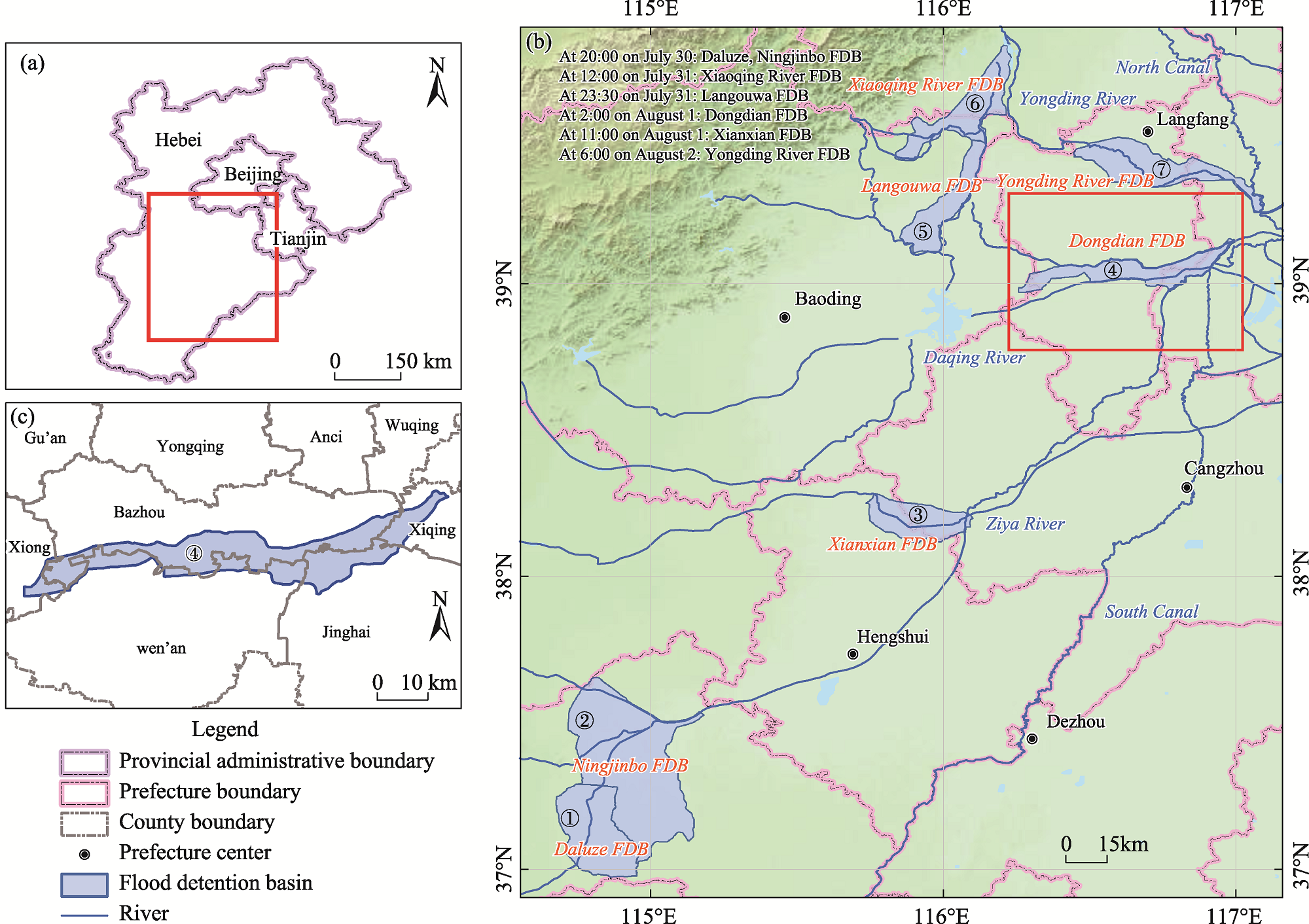

Fig. 1 (a) Map depicting the main flood-affected areas in this flooding event; (b) Location map and activation times of seven flood detention basins (FDBs), including ①Daluze, ②Ningjinbo, ③Xianxian, ④Dongdian, ⑤Langouwa, ⑥Xiaoqing River and ⑦Yongding River; (c) Location map of Dongdian FDB

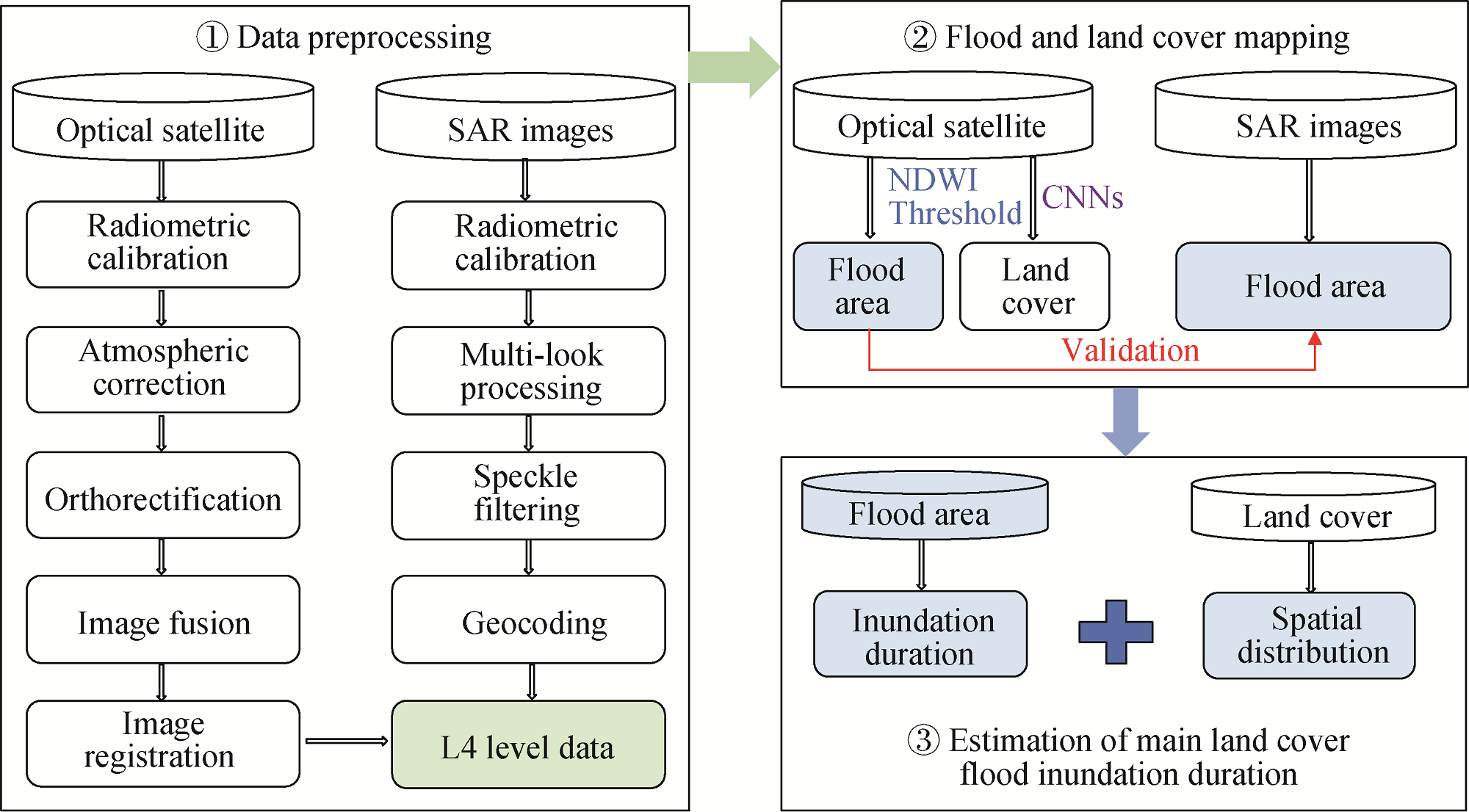

Fig. 2 Workflow diagram with data sources, analytical process, and output

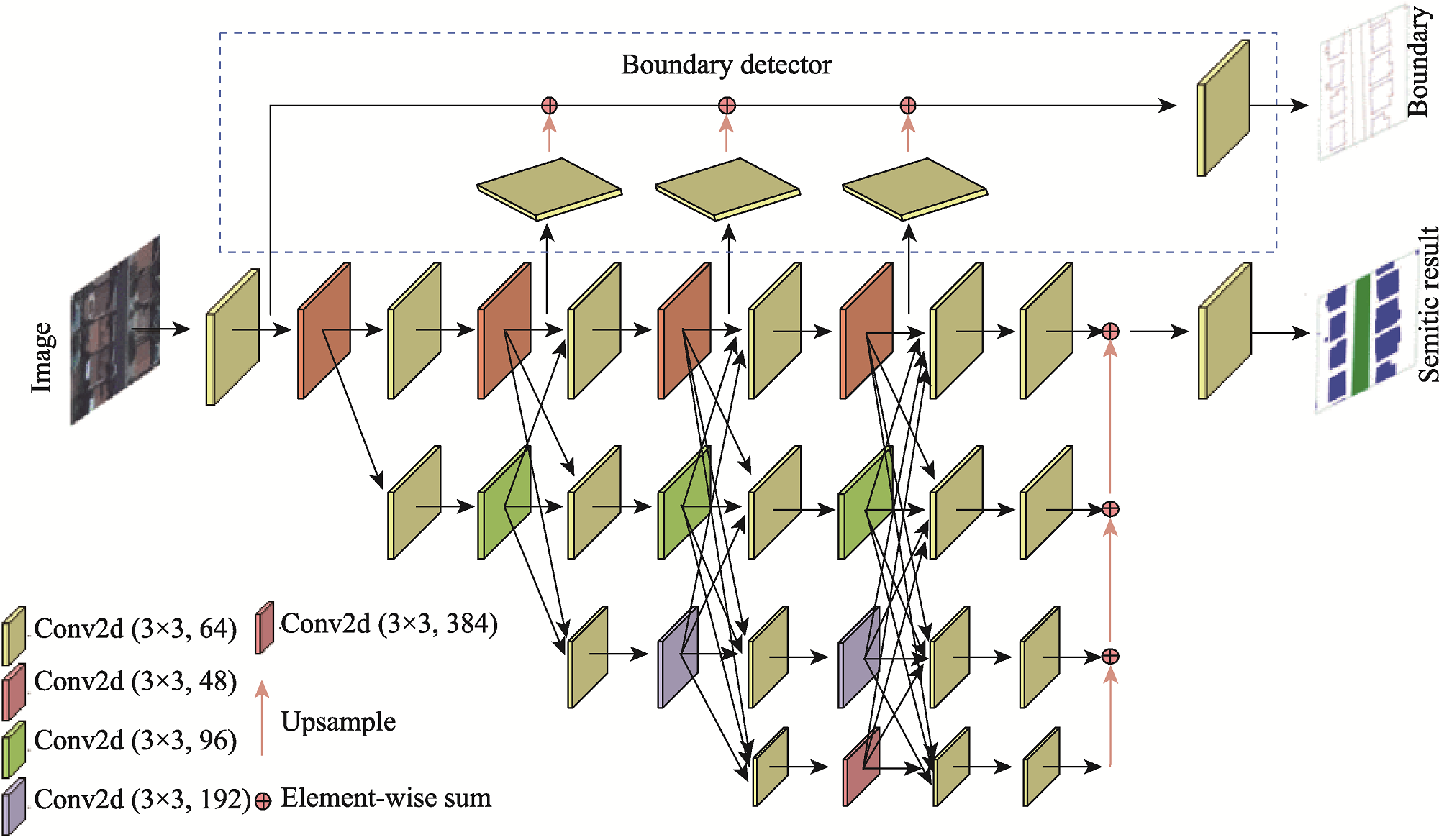

Fig. 3 Adaptive fine-grained segmentation network model for the building structure diagram

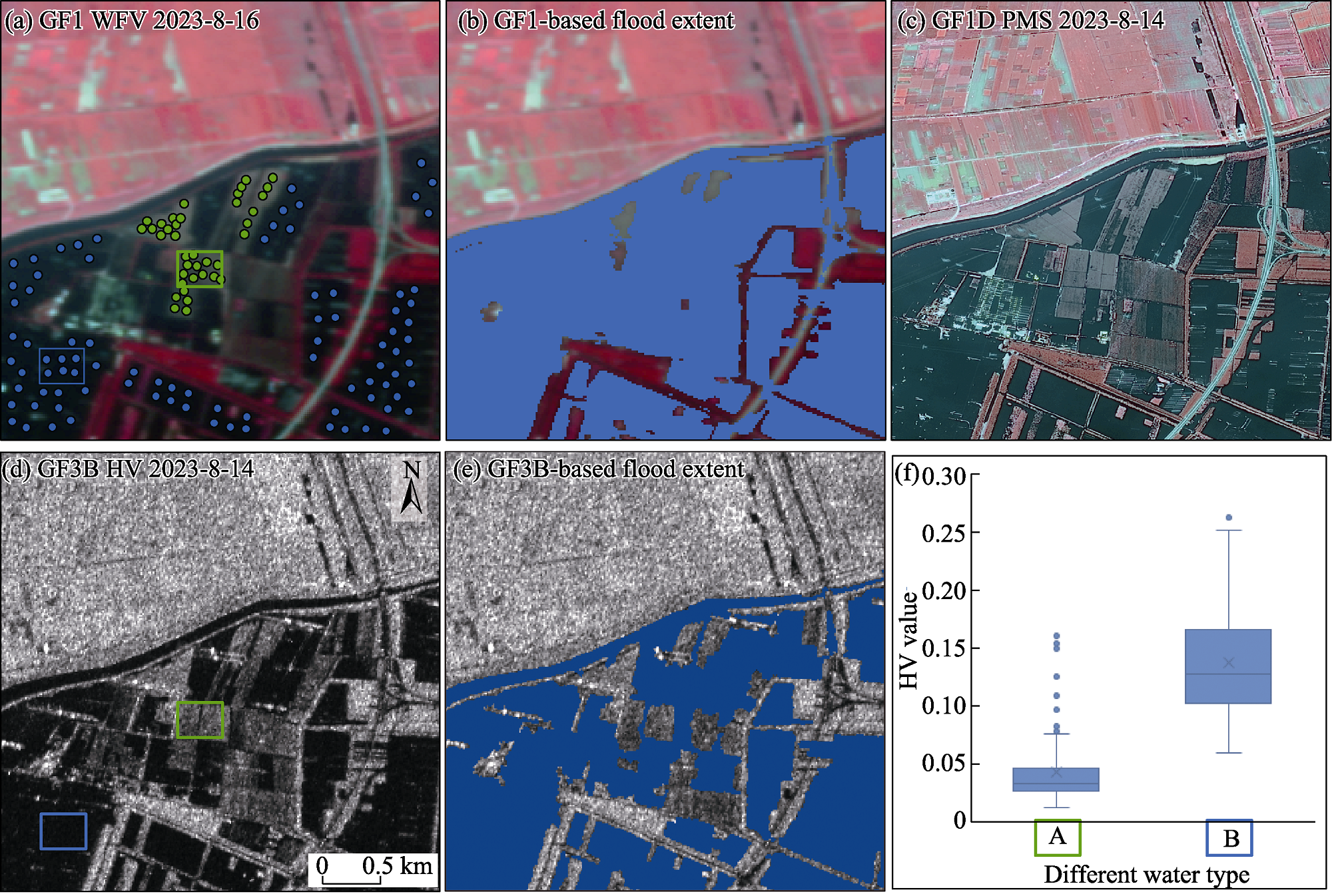

Fig. 4 Sample images from the results of the OTSU approach for the respective visual assessments Note: The blue color indicates the extent of flooding that we mapped.
Table 2 Water area extraction results

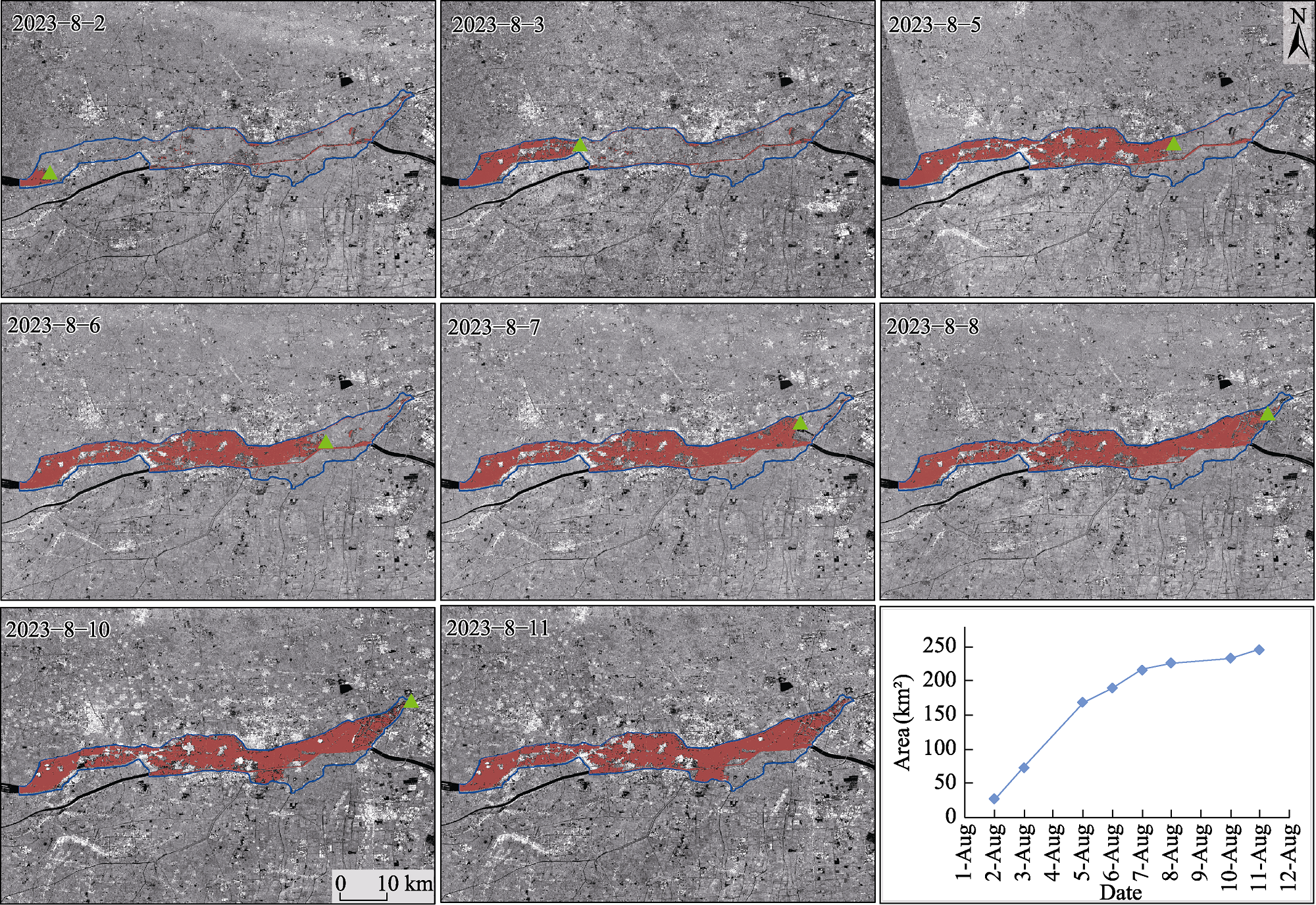

Fig. 5 Flood extent changes during the rapid expansion phase Note: The orange color in the figure images represents the flooded area, the blue border indicates the scope of the FDB, and the green triangles represent the positions of water intakes.

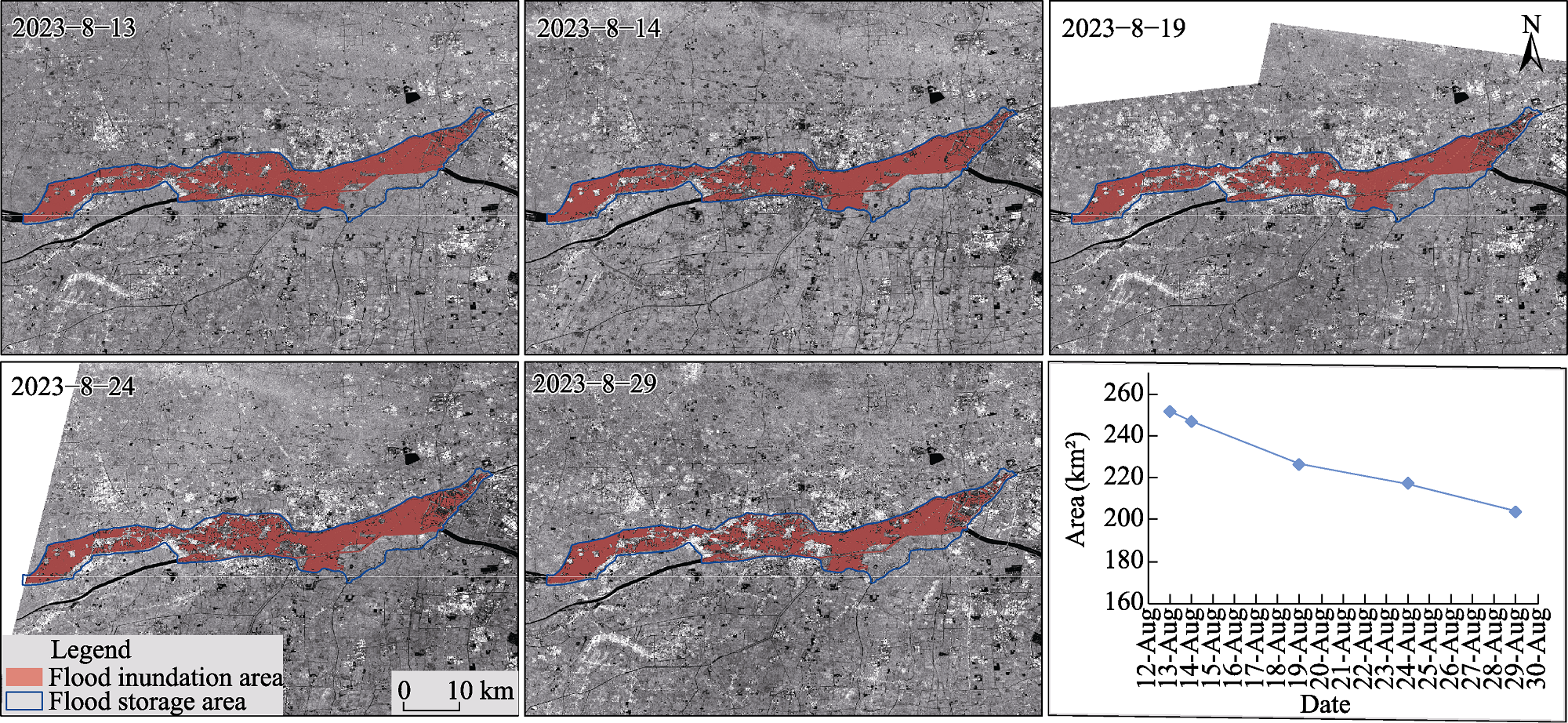

Fig. 6 Changes in flood extent during the flood recession phase

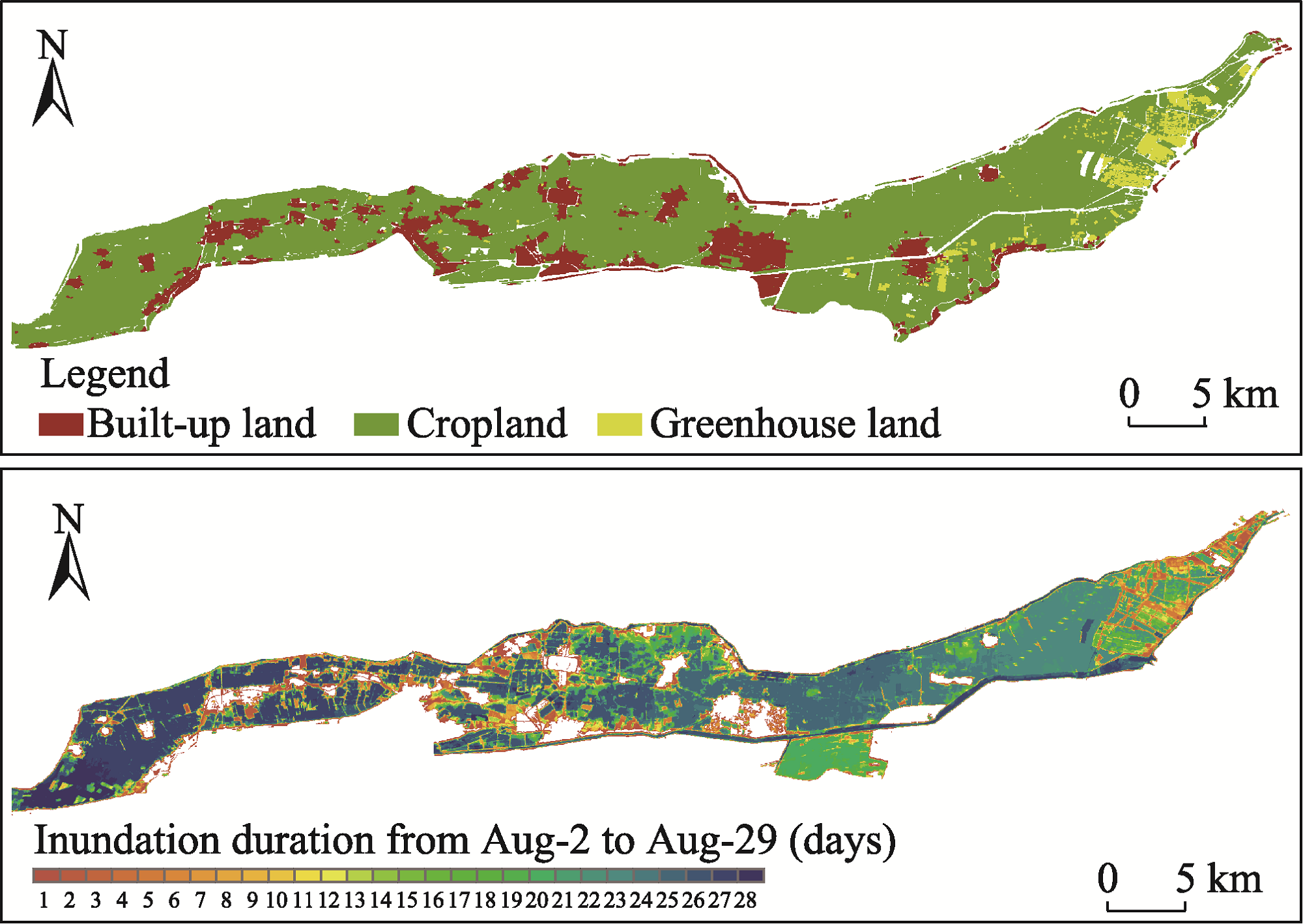

Fig. 7 Flood duration since the Dongdian FDB opened

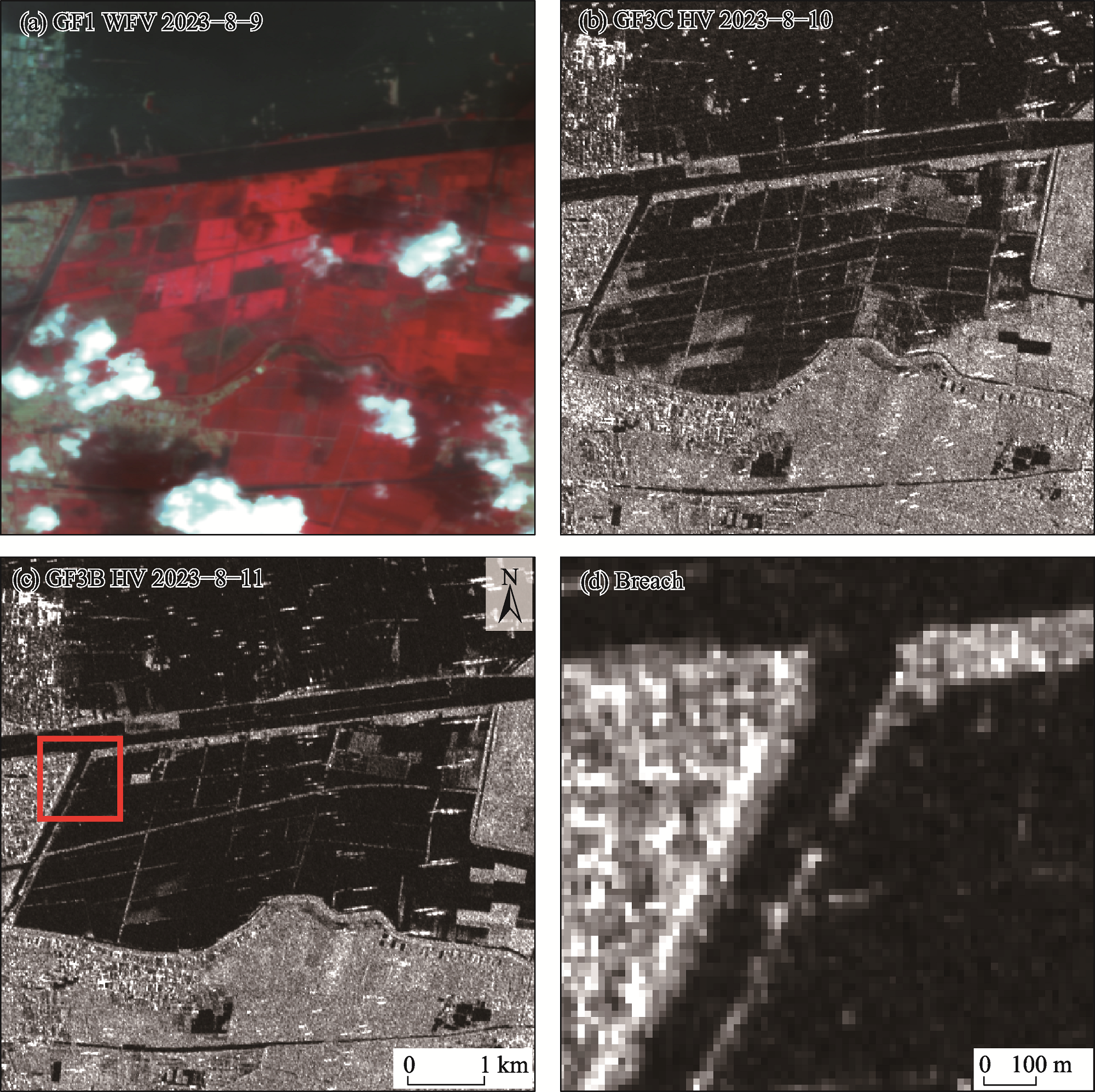

Fig. 8 A breach location was identified during the flood recession phase
