Journal of Resources and Ecology >
Temporal Variation Characteristics of Negative Air ion Concentration and Air Quality Evaluation in Songshan National Nature Reserve, Beijing
HAO Peiwen, E-mail:2267444813@qq.com |
Received date: 2022-07-13
Accepted date: 2023-01-30
Online published: 2023-10-23
Supported by
The Beijing Municipal Forestry and Parks Bureau Project(2016 HXFWBHQ-ZZX-002)
The aim of this study was to investigate the temporal characteristics of negative air ion concentration in the Songshan National Nature Reserve, Beijing. Hence, three typical forest stands and a nonforested land control group were selected during the growing season of May to October. The ion concentration was monitored using the Japanese COM-3200PRO negative air ion detector, and the air quality was evaluated using the amperometric air ion evaluation index method. The results showed that the diurnal variation of negative air ion concentration in the typical forest stands exhibited “double peak” curves, except for Betula dahurica forest in spring. The peak values of the annual growth season were attained between 9:00 and 11:00 as well as 16:00 and 17:00, and the trough value was attained at approximately 13:00. The monthly concentration variation characteristics in the stands showed “single peaks”, with the exception of the Juglans mandshurica forest. The negative air ion concentration was higher in July, August, and September both inside and outside the forest. The seasonal concentration variation characteristics showed that the negative air ion concentration inside and outside the forest followed the relation: summer (833±150 ion cm-3) > autumn (735±174 ion cm-3) > spring (632±178 ion cm-3). From the air quality evaluation, the average CI value of the forested land was 0.75±0.26, indicating that the air was clean. The average CI value of the nonforested land was 0.31±0.04; the air quality was within an acceptable range. Overall, the concentration of each stand followed the relation: Juglans mandshurica (0.83±0.11) > Tilia mongolica (0.74±0.10) > Betula dahurica (0.67±0.13) > nonforested land (0.31±0.04). Varied forest stands have different temporal characteristics for negative air ion concentration and air quality. Using forest resources wisely, it is possible to significantly enhance the air quality in the Songshan National Nature Reserve.
HAO Peiwen , SHI Changqing , ZHAO Yining , XIN Chengshu , CAO Yue , ZHAO Tingning . Temporal Variation Characteristics of Negative Air ion Concentration and Air Quality Evaluation in Songshan National Nature Reserve, Beijing[J]. Journal of Resources and Ecology, 2023 , 14(6) : 1156 -1163 . DOI: 10.5814/j.issn.1674-764x.2023.06.005
Table 1 Summary of forest stands |
Sample site | Forest type | Forest age (yr) | Average tree height (m) | Average diameter at breast height (cm) | Elevation (m) | Measuring point coordinate | Canopy density | Stand density (plant ha-1) |
---|---|---|---|---|---|---|---|---|
A | Juglans mandshurica | 28 | 12.79 | 14.97 | 971 | 115°45′22″E, 40°31′13″N | 0.4 | 423 |
B | Tilia mongolica | 30 | 15.30 | 12.88 | 1250 | 115°46′22″E, 40°32′45″N | 0.5 | 283 |
C | Betula dahurica | 25 | 12.37 | 11.96 | 1462 | 115°48′23″E, 40°32′46″N | 0.6 | 249 |
D | Nonforested land | - | - | - | 1420 | 115°48′23″E, 40°32′43″N | - | - |
Table 2 Evaluation criteria for amperometric air ion evaluation index |
Air quality grade | Degree of air cleanliness | CI value |
---|---|---|
A | The most clean | >1.00 |
B | Clean | 0.70 -1.00 |
C | Medium | 0.50-0.69 |
D | Allowable value | 0.30-0.49 |
E | Critical value | <0.30 |

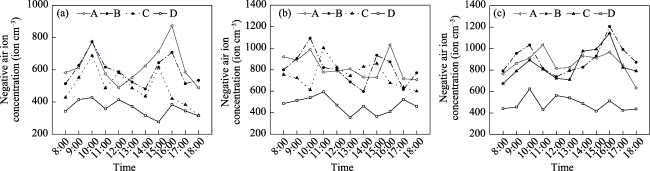

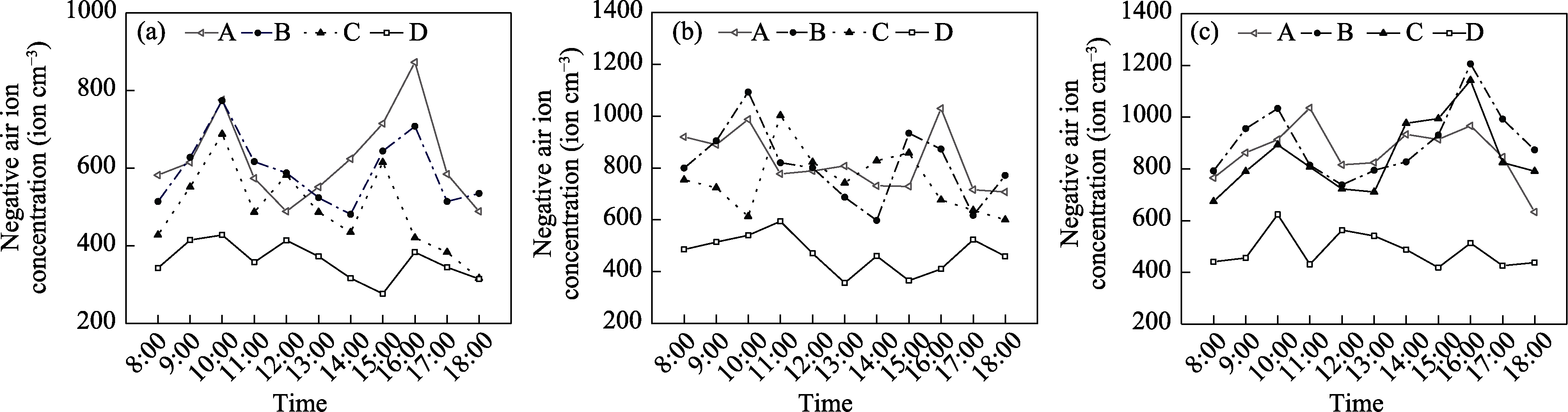

Fig. 1 Daily characteristics of negative air ion concentrations in (a) spring, (b) summer, and (c) autumnNote: A, B, C, and D represent the Juglans mandshuric forest, the Tilia mongolica forest, the Betula dahurica forest, and the nonforested land, respectively. |

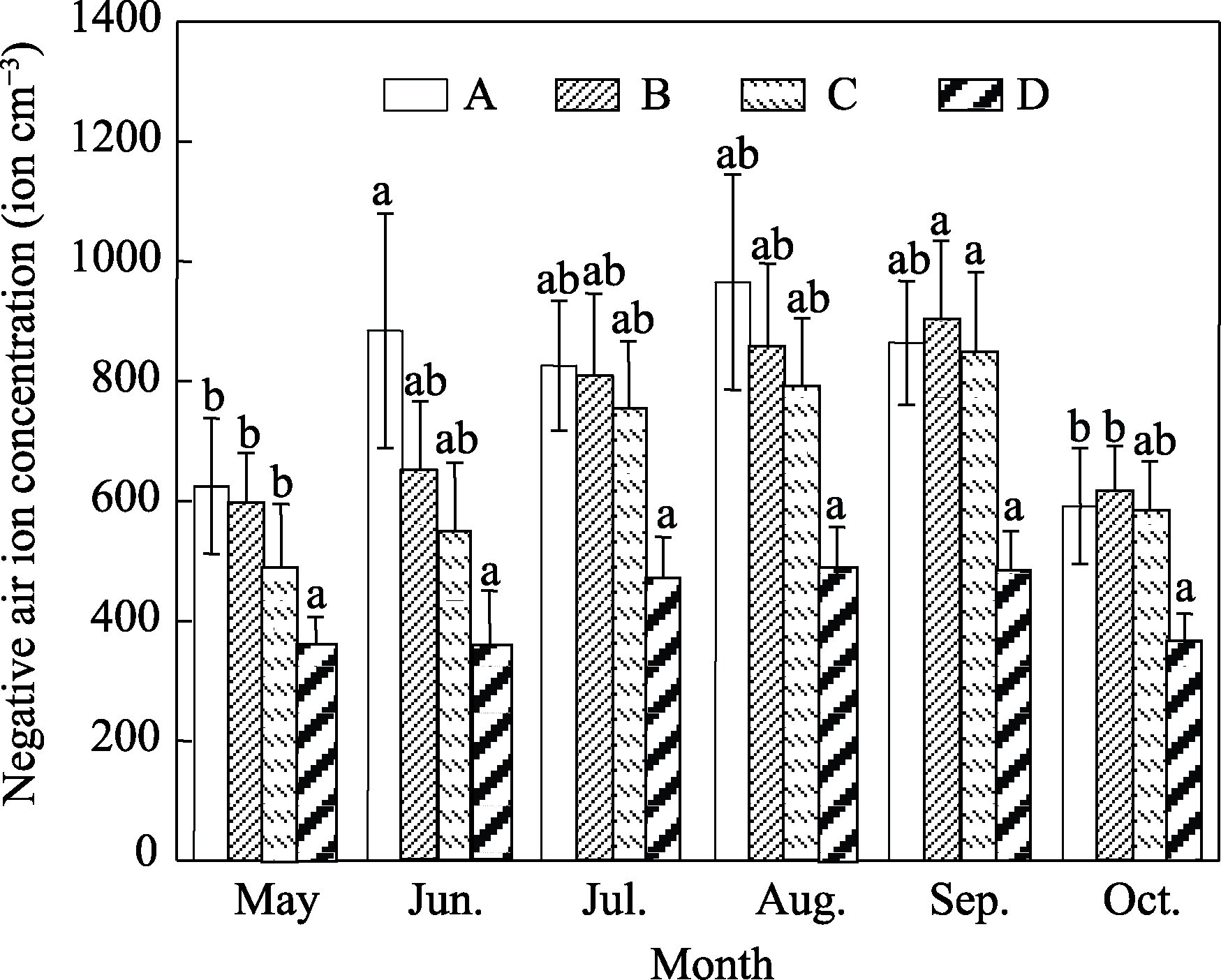

Fig. 2 Monthly change characteristics of negative air ion concentrationNote: A, B, C, and D represent the Juglans mandshuric forest, the Tilia mongolica forest, the Betula dahurica forest, and the nonforested land, respectively; The different letters of a, b represent significant differences. |
Table 3 Seasonal air ion concentrations by forest stand types (Unit: ion cm-3) |
Stand origin | Forest type | Spring | Summer | Autumn | Average | ||||
---|---|---|---|---|---|---|---|---|---|
NAIs | PAIs | NAIs | PAIs | NAIs | PAIs | NAIs | PAIs | ||
Forested land | Juglans mandshurica | 755±206 | 753±163 | 896±164 | 832±92 | 728±169 | 725±115 | 793±195 | 770±135 |
Tilia mongolica | 621±107 | 626±86 | 833±141 | 804±125 | 761±179 | 799±133 | 738±170 | 743±143 | |
Betula dahurica | 519±114 | 547±109 | 772±116 | 752±82 | 716±172 | 740±127 | 669±174 | 679±143 | |
Average | 632±178 | 642±150 | 833±150 | 796±107 | 735±174 | 755±129 | 733±187 | 731±145 | |
Nonforested land | 360±72 | 491±97 | 478±70 | 654±82 | 426±81 | 565±90 | 421±89 | 570±112 |
Note: NAIs and PAIs represent the negative air ion concentration and positive air ion concentration. |
Table 4 Air quality assessment results |
Stand origin | Forest type | Spring | Summer | Autumn | Average | ||||
---|---|---|---|---|---|---|---|---|---|
CI value | Grade | CI value | Grade | CI value | Grade | CI value | Grade | ||
Forested land | Juglans mandshurica | 0.76±0.26 | B | 0.98±0.17 | B | 0.74±0.25 | B | 0.83±0.11 | B |
Tilia mongolica | 0.62±0.14 | C | 0.87±0.17 | B | 0.74±0.26 | B | 0.74±0.10 | B | |
Betula dahurica | 0.50±0.13 | C | 0.80±0.16 | B | 0.71±0.24 | B | 0.67±0.13 | C | |
Average | 0.63±0.21 | C | 0.88±0.24 | B | 0.73±0.25 | B | 0.75±0.26 | B | |
Nonforested land | 0.27±0.06 | E | 0.35±0.08 | D | 0.32±0.08 | D | 0.31±0.04 | D |
