Effects of Simulated Diurnal Asymmetrical Warming on the Growth Characteristics and Grain Yield of Winter Highland Barley in Tibet
QIN Yong, E-mail: 838753117@qq.com |
Received date: 2021-05-25
Accepted date: 2022-02-22
Online published: 2023-01-31
Supported by
The Natural Science Foundation of China(31370458)
The Science and Technology Service Network Project of Chinese Academy of Sciences(KFJ-STS-QYZD-117)
The Local Project Guided by the Central Government(YDZX20195400004717)
The Key Project of Dazi District of Tibet Autonomous Region(XZDZKJ-2021-01)
There has been an obvious diurnal asymmetrical warming effect as a result of the overall climate warming in the Tibetan Plateau. To reduce the uncertainty caused by the diurnal asymmetrical warming effect on future food security predictions in the Tibetan Plateau, this study used winter highland barley (var. Dongqing No. 1) for the experimental materials, and the FATI (Free Air Temperature Increase) field open heating system to carry out a simulated diurnal asymmetrical warming experiment (AW: All-day warming, DW: Daytime warming, NW: Nighttime warming, CK: Control) for two growing seasons (2018-2019 and 2019-2020) at the Lhasa Agroecosystem Research Station. The growth characteristics and yield of Tibetan winter highland barley were investigated in this study. Compared to the control, all the AW, DW and NW treatments had significant effects on the phenological period of winter highland barley, with the advancement of the phenological phase and shortening of the whole growth period. The degree of influence was AW>NW>DW, and all the AW, DW and NW treatments shortened the interval from sowing to heading of winter highland barley and increased the interval from heading to maturity. The effect on the phenological phase was the most obvious for AW and reached a statistically significant level (P<0.05). During the generative growth phase, the biomass above-ground and plant height of winter highland barley had an increasing tendency under the different warming conditions. In the late growth period, the biomass above-ground and plant height of the NW treatment were significantly higher than those of the other treatments. In addition, the warming caused a decrease in the dry matter distribution proportions of leaves and stems at the mature stage, and an increase in the distribution ratios of roots and spikes; and the AW, NW and DW treatments increased grain yields by 16.4%, 24.6% and 9.5%, respectively, on average in the two years. The increasing effect on grain yields of the NW treatment reached a significant level compared with the control in 2019-2020 (t=-2.541, P=0.026). In terms of yield composition, the effective spike number and 1000-grain weight tended to increase. The grain number per spike tended to increase, except for the AW treatment, while panicle length and seed setting rate tended to decrease, except for the NW treatment. Therefore, the effects of different simulated diurnal asymmetrical warming treatments on the growth characteristics and yield of winter highland barley were variable in the Tibetan Plateau.
QIN Yong , FU Gang , SHEN Zhenxi , ZHONG Zhiming . Effects of Simulated Diurnal Asymmetrical Warming on the Growth Characteristics and Grain Yield of Winter Highland Barley in Tibet[J]. Journal of Resources and Ecology, 2023 , 14(1) : 1 -14 . DOI: 10.5814/j.issn.1674-764x.2023.01.001

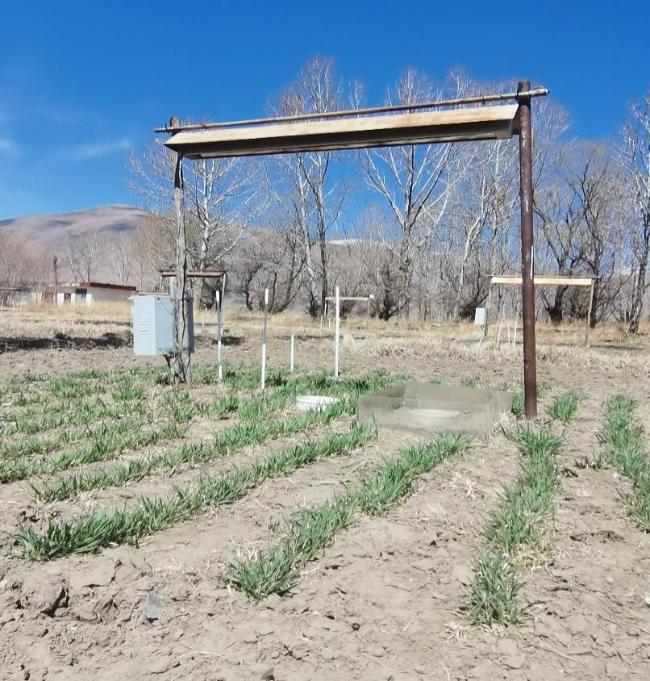

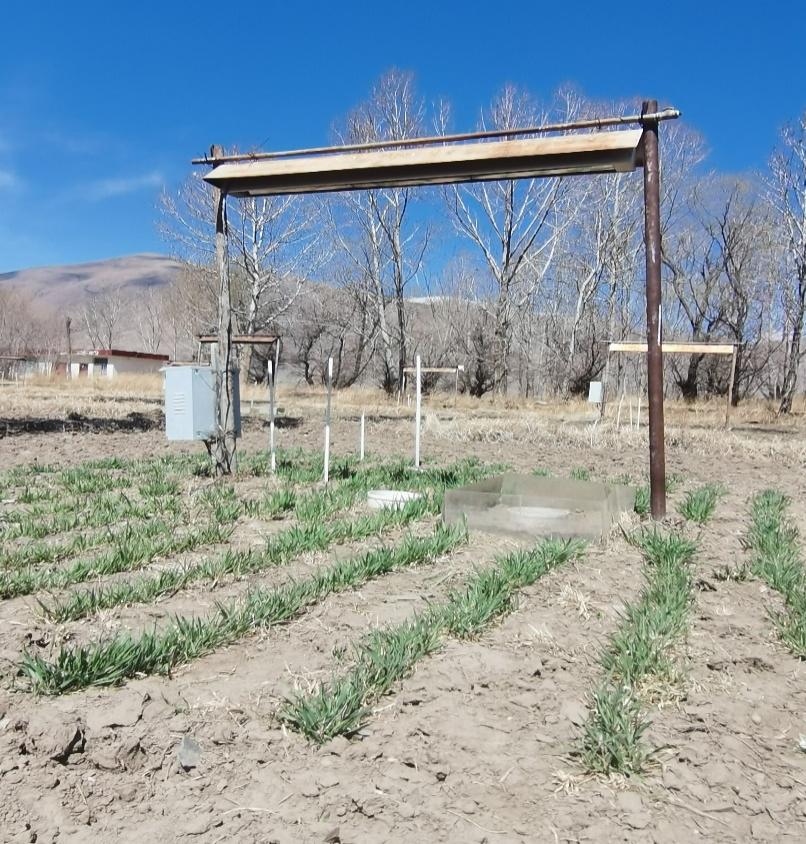

Fig. 1 Free air temperature increase (FATI) facility |

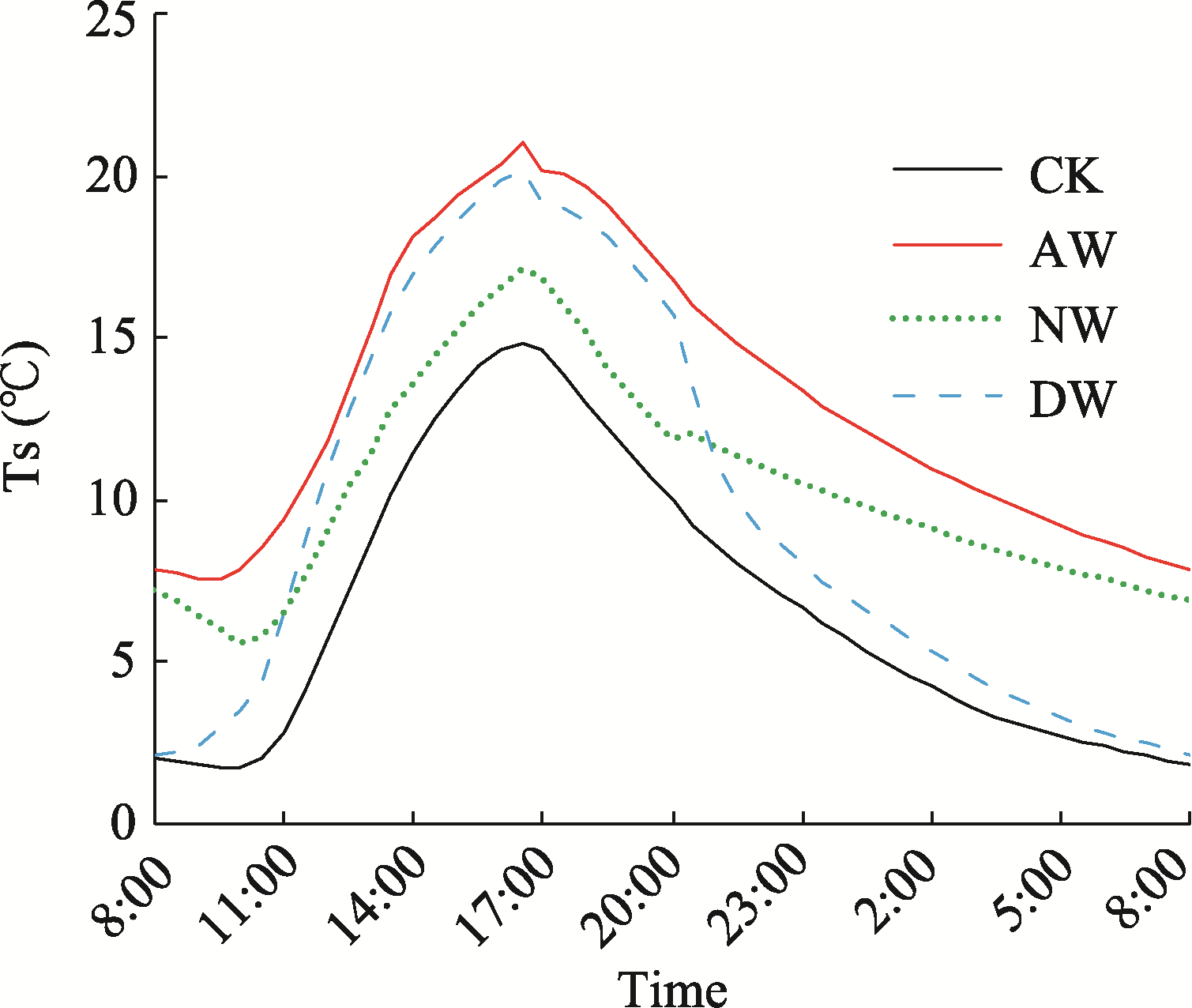

Fig. 2 Diurnal soil (5 cm) temperature (Ts) variation trends on November 26, 2019 under the FATI facility with three warming scenariosNote: All-day warming (AW), daytime warming (DW), nighttime warming (NW), and control (CK), and the same annotations are used in the figures below. |

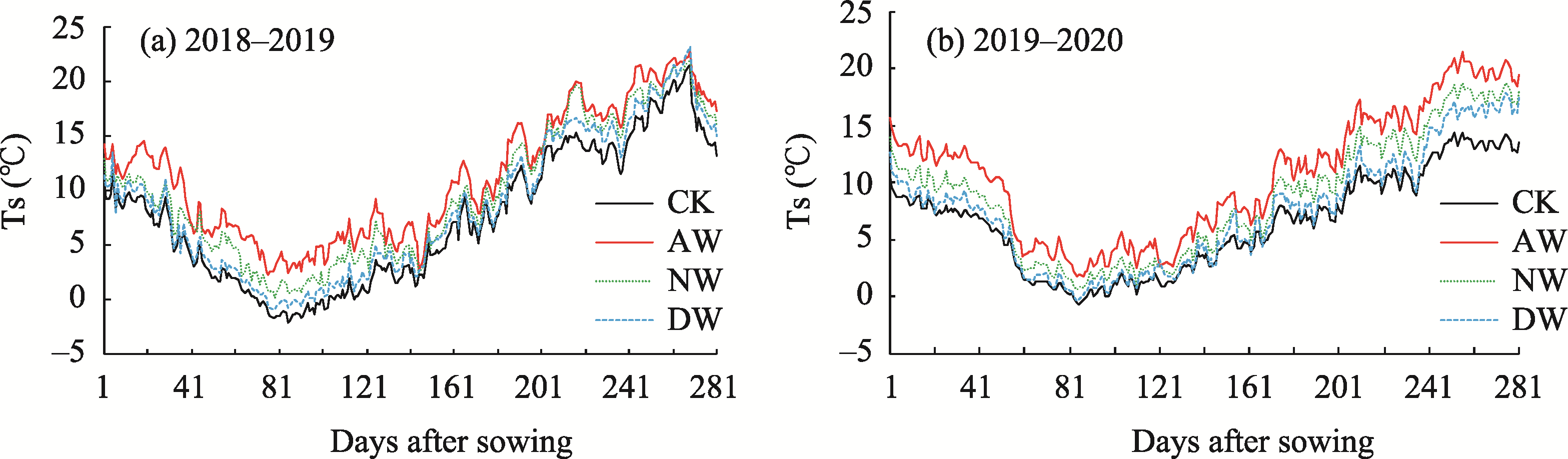

Fig. 3 Trends of average daily soil (5 cm) temperature (Ts) under three warming scenarios in the two growing seasons of (a) 2018-2019 and (b) 2019-2020 |
Table 1 Effects of diurnal asymmetrical warming on the soil temperature (5 cm) during the whole growth period of winter highland barley |
Year | Treatment | Average daily temperature (℃) | Average daytime temperature (℃) | Average night temperature (℃) | Daily maximum temperature (℃) | Lowest daily temperature (℃) | Daily range temperature (℃) |
---|---|---|---|---|---|---|---|
2018-2019 | CK | 6.69 | 8.05 | 5.32 | 12.09 | 2.01 | 10.08 |
AW | 10.60 | 11.99 | 9.20 | 16.15 | 6.43 | 9.72 | |
NW | 8.50 | 8.72 | 8.27 | 13.97 | 6.07 | 7.90 | |
DW | 7.69 | 10.17 | 5.81 | 14.32 | 3.44 | 10.88 | |
2019-2020 | CK | 6.40 | 7.70 | 5.10 | 12.79 | 2.26 | 10.54 |
AW | 10.21 | 10.89 | 9.53 | 16.54 | 7.09 | 9.46 | |
NW | 8.47 | 8.42 | 8.51 | 13.32 | 5.36 | 7.96 | |
DW | 7.51 | 9.50 | 5.53 | 14.08 | 3.34 | 10.74 |
Note: The average temperature during the day and the average temperature at night are the average temperatures from 08:00-20:00 and from 20:00 to 08:00 the next day under each warming treatment, respectively. |
Table 2 Effects of diurnal asymmetrical warming on the phenological phases of winter highland barley under a FATI facility |
Year | Treatment | Average date (Days after sowing) | |||||||
---|---|---|---|---|---|---|---|---|---|
Sowing | Emergence | Tillering | Revival | Jointing | |||||
2018-2019 | CK | 10-7 | 10-18(11.0±0a) | 11-26(50.7±0.5a) | 3-21(165.0±2.4a) | 4-21(196.7±0.5a) | |||
AW | 10-7 | 10-15(8.0±0c) | 11-20(44.0±0b) | 3-11(155.0±0d) | 4-3(178.0±0d) | ||||
NW | 10-7 | 10-16(9.0±0b) | 11-23(47.8±3.8a) | 3-16(160.0±0c) | 4-10(185.2±5.5c) | ||||
DW | 10-7 | 10-15(8.8±0.5b) | 11-23(47.8±3.2a) | 3-18(162.5±1b) | 4-17(192.0±1.2b) | ||||
2019-2020 | CK | 10-7 | 10-18(11.7±0.5a) | 11-26(50.3±0.8a) | 3-21(166.7±0.8a) | 4-22(198.7±1.0a) | |||
AW | 10-7 | 10-17(10.3±0.5b) | 11-20(44.0±0b) | 3-10(155.8±3.6b) | 4-5(181.3±2.1d) | ||||
NW | 10-7 | 10-18(11.5±0.6a) | 11-25(49.5±0.6a) | 3-17(162.5±3.4ab) | 4-14(190.8±1.0c) | ||||
DW | 10-7 | 10-18(11.3±0.5a) | 11-25(49.3±3.5a) | 3-19(164.0±3.1a) | 4-18(194.5±1.3b) | ||||
Year | Treatment | Average date (Days after sowing) | |||||||
Heading | Flowering | Filling | Mature | ||||||
2018-2019 | CK | 5-17(222.0±5.4a) | 5-23(228.3±5.2a) | 5-31(236.0±6.2a) | 7-9(275.7±2.9a) | ||||
AW | 4-28(203.3±2.8c) | 5-2(207.8±2.4c) | 5-7(212.5±1.9c) | 6-25(261.8±3.3c) | |||||
NW | 5-6(211.3±2.6b) | 5-11(216.8±2.6b) | 5-17(222.3±3.1b) | 7-2(268.8±1.9b) | |||||
DW | 5-10(215.8±3.6b) | 5-17(222.3±2.6b) | 5-23(228.0±2.2b) | 7-6(272.8±2.8ab) | |||||
2019-2020 | CK | 5-17(223.9±0.4a) | 5-25(231.8±0.8a) | 5-31(237.7±0.8a) | 7-10(277.8±0.4a) | ||||
AW | 4-30(206.5±3.7c) | 5-5(211.0±3.6c) | 5-9(215.5±3.1c) | 6-29(266.8±5.1c) | |||||
NW | 5-12(218.0±2.2b) | 5-18(224.5±1.0b) | 5-24(230.5±1.0b) | 7-6(273.0±0.8b) | |||||
DW | 5-14(220.8±1.7b) | 5-19(225.0±1.4b) | 5-26(232.0±0.8b) | 7-8(275.8±2.6ab) |
Note: In the 3rd column, “10-7” means October 7, and the same notation is used for the others. Data are shown as means ± SD of four replicates. In each growing season, values followed by different letters are significantly different among treatments at P < 0.05. |
Table 3 Effects of diurnal asymmetrical warming on the duration of each phenological phase of winter highland barley and the > 0 ℃ effective accumulated temperature of soil (5 cm) |
Year | Treatment | Sowing- Emergence | Emergence- Tillering | Tillering- Revival | Revival- Jointing | Jointing- Heading | Heading- Flowering | Flowering- Filling | Filling- Mature | Whole growth period | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | LT (d) | EAT (℃) | |||
2018-2019 | CK | 11.0 | 114.9a | 39.7 | 244.4c | 114.3 | 220.2c | 31.7 | 235.7a | 25.3 | 354.1a | 6.3 | 82.9a | 7.7 | 102.5a | 39.7 | 679.3d | 275.7 | 2033.8c | |
AW | 8.0 | 114.6a | 36.0 | 416.0a | 111.0 | 606.4a | 23.0 | 235.4a | 25.3 | 346.1a | 4.5 | 78.7a | 4.8 | 97.4a | 49.3 | 936.8a | 261.8 | 2831.4a | ||
NW | 9.0 | 111.9a | 38.8 | 331.8b | 112.3 | 411.4b | 25.2 | 230.9a | 26.0 | 366.7a | 5.5 | 89.1a | 5.5 | 105.7a | 46.5 | 851.2b | 268.8 | 2498.7b | ||
DW | 8.8 | 112.4a | 39.0 | 295.3b | 114.8 | 277.8c | 29.5 | 234.8a | 23.8 | 335.5a | 6.5 | 83.1a | 5.8 | 101.9a | 44.8 | 769.2c | 272.8 | 2210.1c | ||
2019-2020 | CK | 11.7 | 128.0a | 38.7 | 225.1c | 116.3 | 222.1b | 32.0 | 227.4a | 25.2 | 287.9a | 8.0 | 78.6a | 5.8. | 88.9a | 40.2 | 632.3c | 277.8 | 1890.2b | |
AW | 10.3 | 149.4a | 33.8 | 418.4a | 111.8 | 557.4a | 25.5 | 246.7a | 25.3 | 306.9a | 4.5 | 81.3a | 4.5 | 89.8a | 51.3 | 910.5a | 266.8 | 2760.4a | ||
NW | 11.5 | 137.6a | 38.0 | 362.5b | 114.5 | 395.6ab | 26.8 | 244.7a | 27.3 | 335.7a | 6.5 | 81.9a | 6.0 | 87.7a | 42.5 | 717.2b | 273.0 | 2362.9ab | ||
DW | 11.3 | 138.5a | 38.0 | 349.6b | 113.3 | 296.4b | 32.0 | 233.6a | 26.3 | 291.0a | 4.3 | 86.9a | 7.0 | 87.5a | 43.8 | 640.5b | 275.8 | 2124.0b |
Note: Data are shown as the means of four replicates. In each growing season, values followed by different letters are significantly different among treatments at P < 0.05. LT: lasting time; EAT: effective accumulated temperature. |

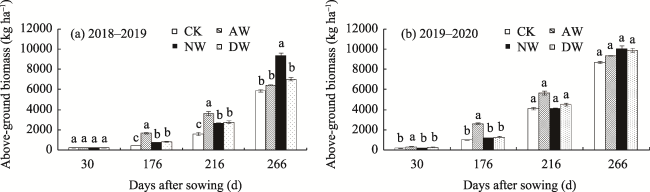

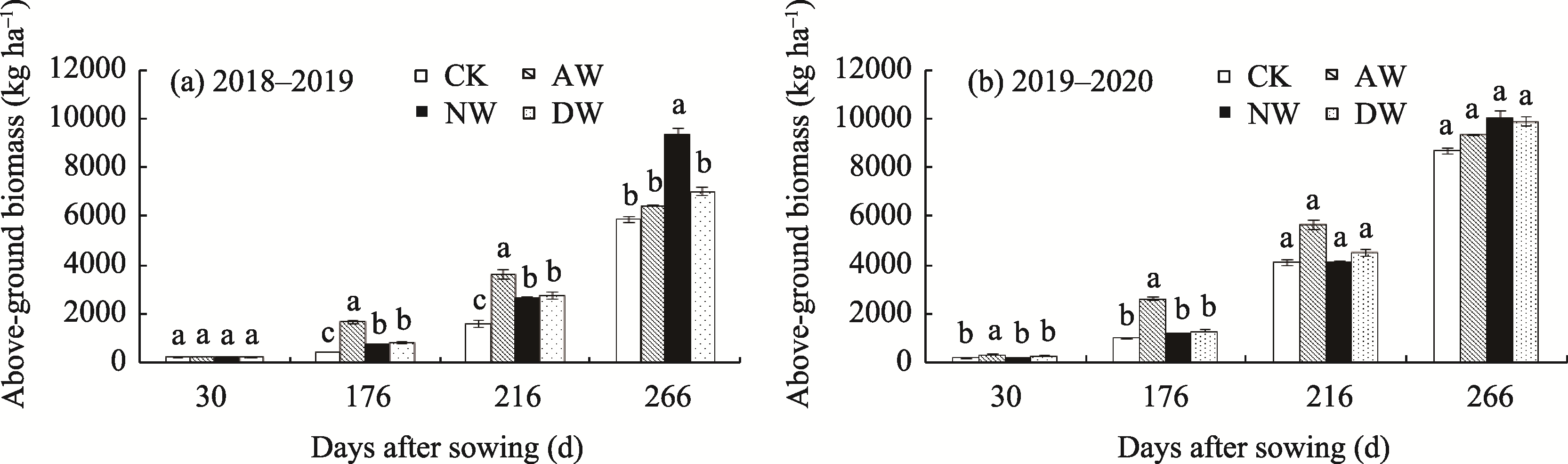

Fig. 5 Effects of diurnal asymmetrical warming on total above-ground biomass of winter highland barley in different growth stages |

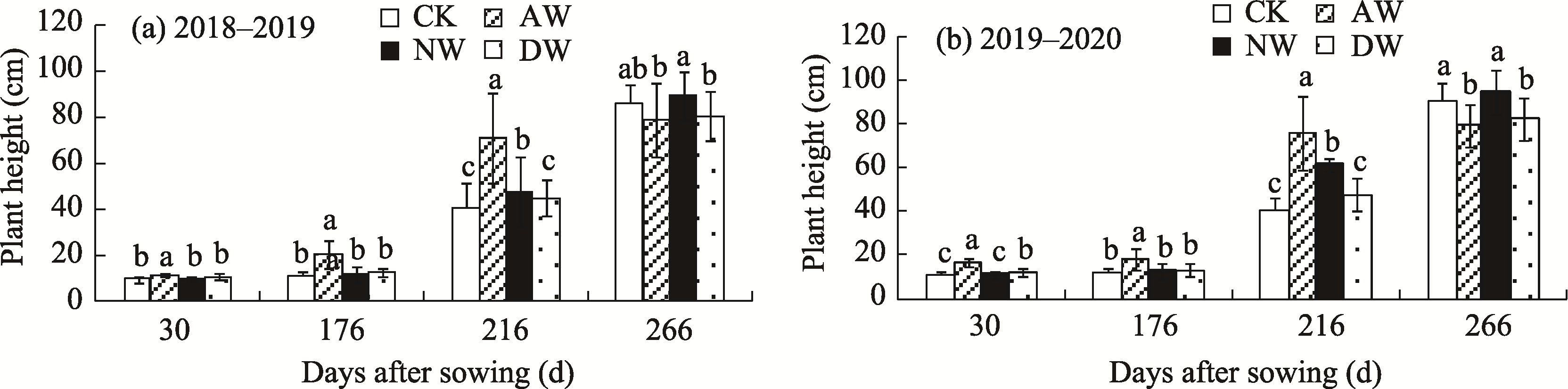

Fig. 6 Effects of diurnal asymmetrical warming on plant height of winter highland barley in different growth stages |

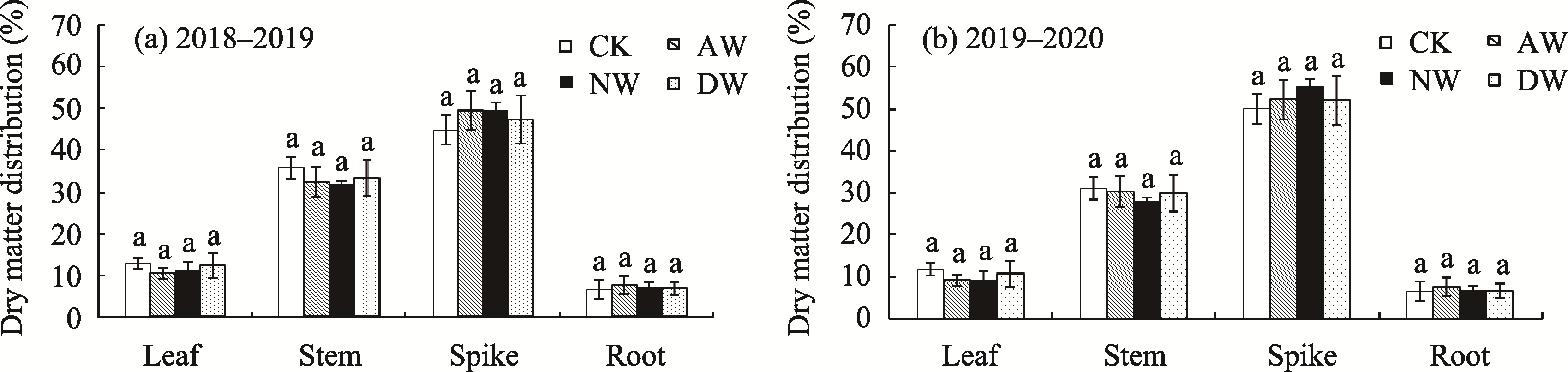

Fig. 7 Effects of diurnal asymmetrical warming on the dry-matter distribution of winter highland barley |
Table 4 Correlations of total aboveground biomass, plant height and five soil (5cm) temperature parameters of winter highland barley at different growth stages |
Year | Index | Total above-ground biomass | Plant height | ||||||
---|---|---|---|---|---|---|---|---|---|
GS0-30 | GS0-176 | GS0-216 | GS0-266 | GS0-30 | GS0-176 | GS0-216 | GS0-266 | ||
2018-2019 | Average daily temperature | 0.88 | 0.96* | 0.94 | 0.12 | 0.72 | 0.91 | 0.98* | -0.44 |
Average daytime temperature | 0.99** | 0.98* | 0.93 | -0.21 | 0.98* | 0.95 | 0.93 | -0.77 | |
Average night temperature | 0.65 | 0.81 | 0.79 | 0.41 | 0.43 | 0.71 | 0.84 | -0.08 | |
Daily range temperature | 0.21 | 0.02 | -0.08 | -0.80 | 0.45 | 0.12 | -0.10 | -0.75 | |
Effective accumulated temperature | 0.80 | 0.90 | 0.83 | 0.25 | 0.65 | 0.87 | 0.88 | -0.30 | |
2019-2020 | Average daily temperature | 0.72 | 0.90 | 0.84 | 0.35 | 0.88 | 0.92 | 0.99* | -0.46 |
Average daytime temperature | 0.98* | 0.95* | 0.92 | -0.27 | 0.95 | 0.92 | 0.77 | -0.85 | |
Average night temperature | 0.45 | 0.74 | 0.63 | 0.34 | 0.70 | 0.77 | 0.97* | -0.14 | |
Daily range temperature | 0.21 | 0.13 | -0.02 | -0.49 | 0.17 | 0.07 | -0.60 | -0.52 | |
Effective accumulated temperature | 0.81 | 0.89 | 0.82 | 0.33 | 0.88 | 0.90 | 0.96* | -0.44 |
Note: * Indicates a significant correlation at the 0.05 level, ** indicates a very significant correlation at the 0.01 level. GS: growth stage. |
Table 5 Effects of diurnal asymmetrical warming on Yield and its components in winter highland barley under a FATI facility |
Year | Treatment | Spike length (cm) | Effective spikes (104 ha-1) | Grain number per spike (grains spike-1) | Seed setting rate (%) | 1000-grain weight (g) | Grain yield (kg ha-1) | Harvest index |
---|---|---|---|---|---|---|---|---|
2018-2019 | CK | 15.80±0.94ab | 277.75±29.05b | 39.91±3.07a | 88.87±1.45a | 33.50±3.35a | 1658.75±141.03a | 0.39a |
AW | 14.89±1.09b | 341.00±27.38a | 38.33±8.07a | 86.63±2.94a | 36.70±5.72a | 1958.77±169.07a | 0.39a | |
NW | 16.55±0.75a | 323.50±45.26ab | 45.20±5.54a | 90.21±1.94a | 33.79±1.75a | 1999.03±150.19a | 0.40a | |
DW | 15.69±0.70ab | 321.00±29.08ab | 42.18±11.05a | 87.98±4.31a | 33.51±1.79a | 1831.95±263.94a | 0.39a | |
2019-2020 | CK | 15.53±0.45ab | 319.33±26.19a | 49.63±3.35ab | 89.74±4.01a | 33.90±3.31a | 2086.80±135.87b | 0.38a |
AW | 15.50±0.89ab | 343.51±55.34a | 47.78±5.63a | 89.67±6.66a | 37.35±2.38a | 2392.75±172.50ab | 0.39a | |
NW | 16.41±0.99a | 340.00±44.99a | 53.00±6.94a | 91.61±2.28a | 35.50±5.86a | 2684.75±148.16a | 0.41a | |
DW | 14.62±0.69b | 330.25±20.51a | 50.60±4.30b | 89.59±0.36a | 34.15±2.82a | 2265.33±161.54ab | 0.39a |
Note: Data are shown as means ± SD of four replicates. In each growing season, values followed by different letters are significantly different among treatments at P < 0.05. |

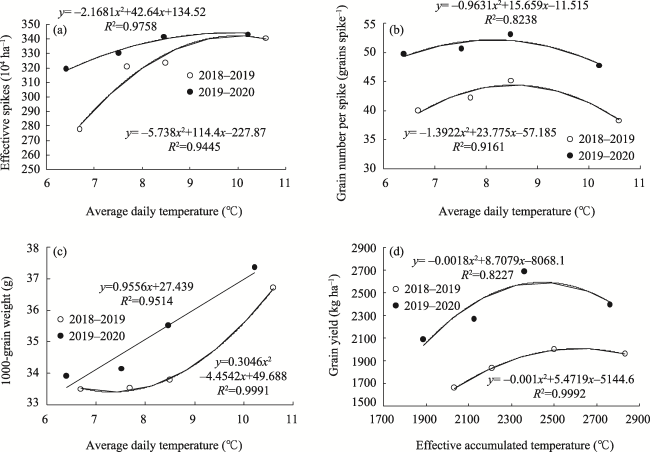

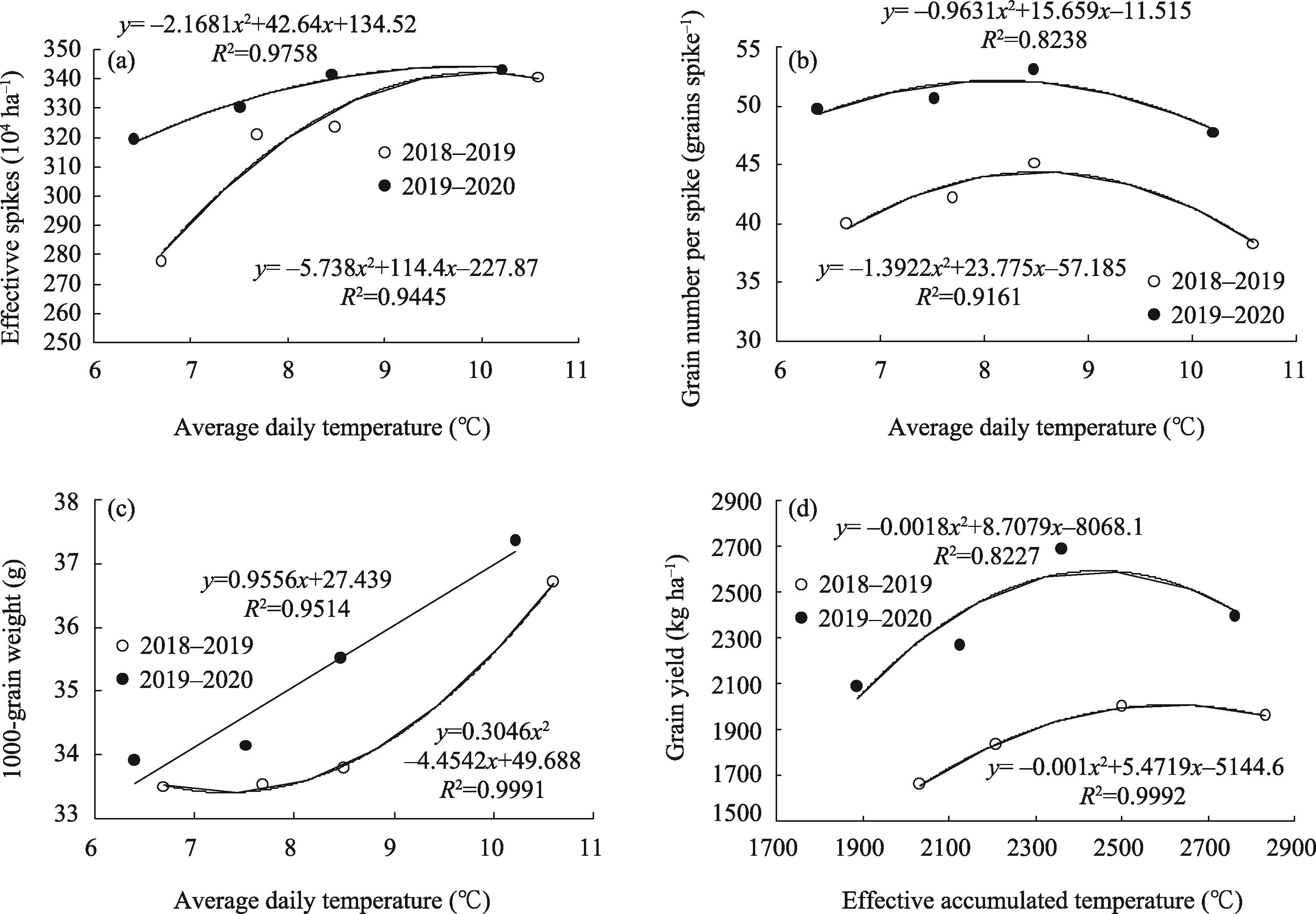

Fig. 8 Relationships between the yield, its components of winter barley and the average daily soil temperature and effective accumulated soil temperature during the whole growth period |
